| arameter |
Value |
Parameter |
Value |
| Nominal Diameter |
250mm |
Surround Shape |
Double Roll |
| Nominal Impedance |
8 Ω |
Cone Shape |
Exponential |
| Minimum Impedance |
7.2 Ω |
Magnet Material |
Ceramic |
| Nominal Power Handling (AES) |
350 W |
Spider |
Single |
| Sensitivity (1W/1m) |
100 dB |
Pole Design |
T-Pole |
| Frequency Range |
80-4000 Hz |
Woofer Cone Treatment |
None |
| Voice Coil Diameter |
76mm |
Fs |
76 Hz |
| Winding Material |
Aluminium |
Re |
6 Ω |
| Former Material |
Glass Fibre |
Qes |
0.22 |
| Winding Depth |
11mm |
Qms |
4.8 |
| Magnetic Gap Depth |
8mm |
Qts |
0.21 |
| Flux Density |
1.45T |
Vas |
20.0 L |
| Overall Diameter |
262 mm |
Sd |
320.0 cm² |
| Bolt Circle Diameter |
245 mm |
EtaZero |
|
| Baffle Cutout Diameter |
230.0 mm |
Xmax |
1.5 mm |
| Depth |
124 mm |
Xvar |
4.5 mm |
| Flange And Gasket Thickness |
14 mm |
Mms |
31 g |
| Air Volume Occupied By Driver |
2.6 L |
BL |
19.6 T·m |
| Net Weight |
7.3 kg |
Le |
1.2 mH |
| Shipping Weight |
7.9 kg |
EBP |
345 |
| Shipping Box |
320x320x160 mm |
|

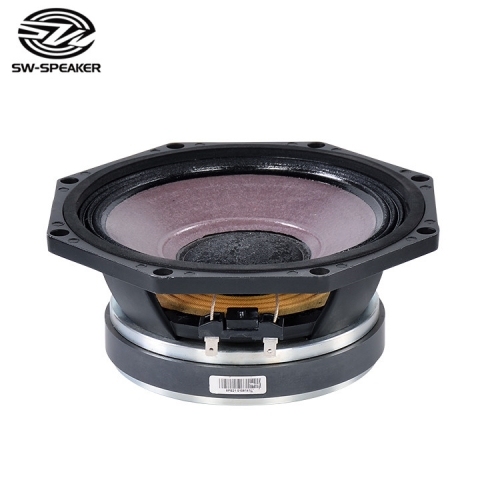

Meet our premium speaker driver unit - an ideal choice for crafting superior audio experiences. This unit boasts a 200 mm nominal diameter and an 8 Ω nominal impedance, delivering robust sound performance that exceeds expectations.
Featuring a minimum impedance of 7.2 Ω, it handles a nominal power rating (according to AES standards) of 200 W with a sensitivity of 98 dB at 1W/1m. This ensures precise and crisp sound reproduction across diverse applications. Its frequency response, spanning from 90 Hz to 5000 Hz, is tailored for accurate and detailed audio playback, perfect for pro audio scenarios.
The 50 mm voice coil, crafted from premium copper, is paired with a Kapton former, ensuring optimal electrical and thermal conductivity. A winding depth of 10 mm and a magnetic gap depth of 8 mm contribute to reduced distortion and consistent audio clarity.
This speaker driver unit harnesses a flux density of 1.25 T, generating a potent and steady magnetic field that optimizes performance and enhances sound quality. It's an dependable and top-tier option for both audio professionals and enthusiasts, offering outstanding acoustic performance on every occasion.
